AtomicaUser Guide

Create a case

Open a DICOM scan or an existing case in Atomica Launcher, save it, and adjust the scan before you start planning.

Before you begin

Have your DICOM files or an existing .atom case ready. A ZIP file that contains one DICOM opens without extracting it.

Quick start

  1. Open your scan

    Open the Launcher and choose a new DICOM or an existing atom file. If slices are missing, a message lets you know.

    Details: Adding New Case
  2. Save the case

    Register your case data, then choose where to save your .atom file.

    Details: Adding New Case
  3. Adjust the DICOM

    Press Adjust Dicom to crop the area of interest and rotate the alignment, then click Start Planning.

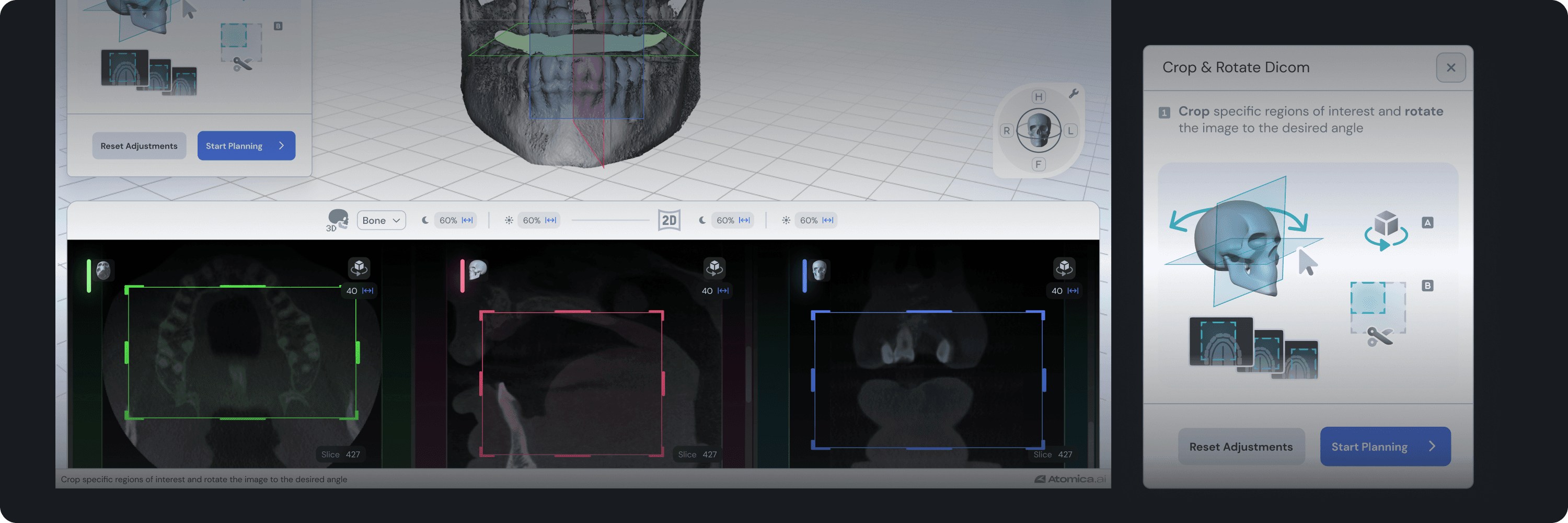

    Adjusting the DICOM in Atomica Launcher
    DICOM adjustment in Atomica Launcher.
    Details: Adjusting Dicom

Full Launcher reference

The Atomica Launcher is the central hub for managing all your planning workflows. Open your cases, whether from DICOM, Atom, or Carestream files, and save patient data seamlessly. From here, effortlessly navigate between the three core apps—Planner, Segmentation, and Design—ensuring a smooth and integrated experience for efficient case planning and execution.

Adding New Case

Once you open the launcher app you can choose between opening new DICOM or an existing atom file. Also you can open ZIP files without extraction if they contain one DICOM file.

If there are missing slices you’ll get a message informing you.

Once the file is open you’ll choose where to save you atom file after registering your case data.
This will lead you to where you can adjust the Dicom file and ten head to one of the apps to start your case.

Creating New Case

Case Sorting in Atomica Launcher

The Atomica Launcher allows you to organize your cases using flexible sorting options, making it easier to quickly locate and manage your work.

Open the Atomica Launcher.

  1. Click on the Sort option.

  2. Select your preferred sorting method (Recently Added, Last Opened, or Alphabetical).

  3. Choose whether to apply Ascending or Descending order.

    Case Sorting in Atomica Launcher

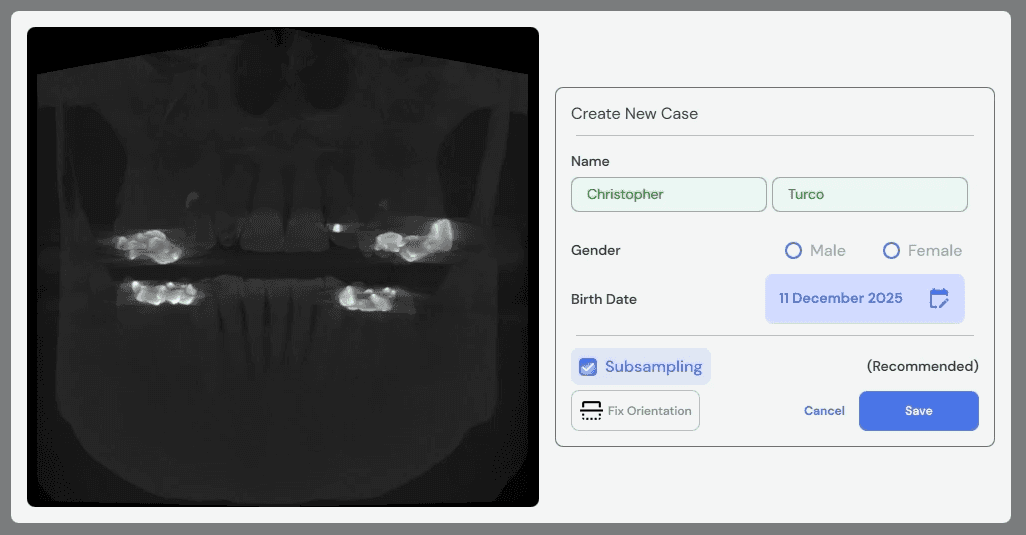

Subsampling for Large DICOM Files

Large DICOM files support subsampling for smoother performance.

Illustration for Subsampling for Large DICOM Files

Adjusting Dicom

Press Adjust Dicom  This will lead you to where you can adjust the views before planning.

  1. Crop  the area of interest by moving lines of the square

  2. Rotate alignment using the rotation button

  3. You can reset all changes using the reset button or using the keyboard as shown in the guiding bar at the bottom or just click Reset Adjustments

  4. After Finishing, click Start Planning

    **To move\rotate\zoom the 3D model, use the mouse or the keyboard as instructed in the Guiding bar at the bottom.

    Illustration for Adjusting Dicom

    This bar will show at all phases of planning. You can always use it as your instant guide.

Illustration for Adjusting Dicom

Changing Teeth Numbering System

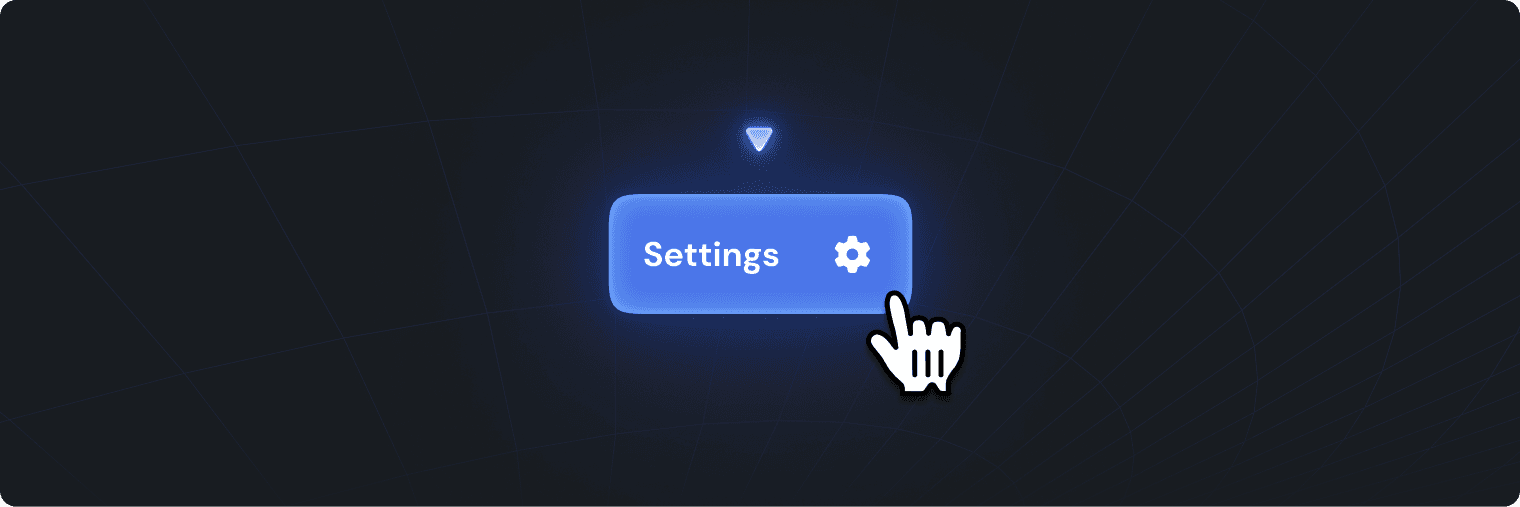

From settings, select Preferences and select your preferred teeth numbering system.

Changing Teeth Numbering System

Changing Shortcuts

From settings, select shortcuts and choose your preferred sets of shortcuts

Universal ShortcutsIllustration for Changing Shortcuts

Customizable Sensitivity for Zoom, Pan, and Rotation Control


You can now control the sensitivity of zooming, panning, and rotation for a more personalized and precise navigation experience.

·        Open the Settings menu within the module.

·        Go to Preferences.

·        Adjust the sliders for Zoom, Pan, and Rotation to match your preferred control speed.

·        Changes are applied instantly for a smoother workflow.

Sensitivity of zoom\pan\rotation

WhatsApp Support

Press on the WhatsApp icon in the launcher and it will automatically direct you to a WhatsApp Chat where you can find instant support

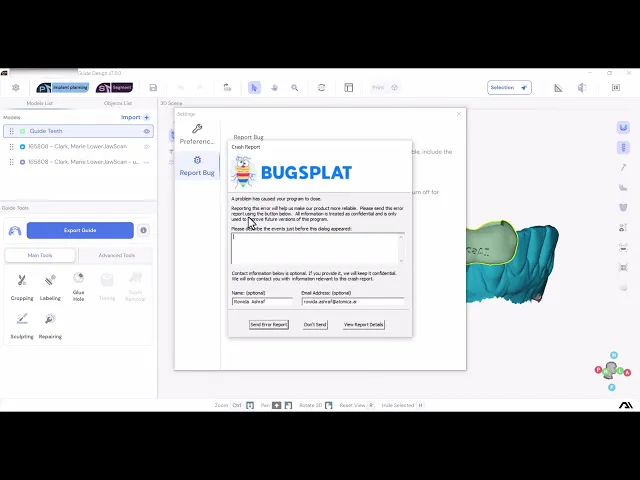

Manual Crash Reporting

Encountered a bug? Use the new manual reporting tool to send us the data so we can fix it faster.

Manual Crash Reporting
