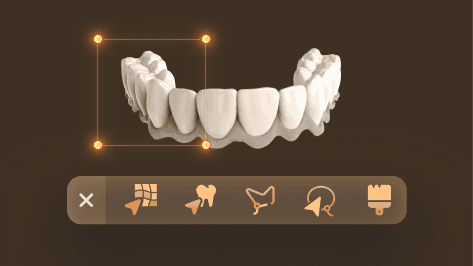

Selection tools
First, make sure to select the right model by clicking on it and making sure its label is highlighted. Then choose select. There are multiple selection tools you can use according to your preferences and needs:
Brush tool: Draw directly on the model using the mouse. You can change the brush size using the mouse scroll or changing its radius. To unselect parts, keep pressing Ctrl while moving on the selected parts. You can then choose the operation you need to do for the selected parts.
Lasso Tools: There are multiple lasso tools to choose from; make sure to click Enter once you finish placing the points.
Teeth segmentation: The first time you choose this tool, the teeth will be segmented separately. You can then mark a tooth or more. Choosing delete and fill will simulate the extraction site.
**Invert selection by pressing the letter “I”
** Below the screen, you will find an info bar that will always guide you through the procedure.
Cropping tool
Select the cropping tool and choose between various cropping methods. To crop and fill the model, it has to be watertight, meaning that it has no holes and no shells.
Plane cut
A cropping tool based on planes. You can keep both parts or only one of them. You can also fill out both of them or only one. To invert the selected part, click “I”
Sculpting
To Sculp models, use sculpting tool, which you can adjust it's size and strength. Also you can mark faces to be protected from sculpting as sleeve areas by selecting them using any of the selection tools and marking Protect Selected Faces
Labeling
Mark your Guides and Models by labeling them. Select the labeling tool and write the text you want and adjust the extrusion length and whether you want it engraved or not. heading to the model itself ypu can draw the box that will contain the text with the size you want. Then click Label.
Tooth extraction
If you're planning to extract teeth and you want to do virtual extraction on the model, select Tooth Selection from the Selection tools and the teeth will be automatically selected. select the tooth you want to virtually extract and choose Delete(fill)
Show/hide objects
Through all the designing process you can show and hide objects and models by selecting the Visibility Icon in front of them.
Selection tools
First, make sure to select the right model by clicking on it and making sure its label is highlighted. Then choose select. There are multiple selection tools you can use according to your preferences and needs:
Brush tool: Draw directly on the model using the mouse. You can change the brush size using the mouse scroll or changing its radius. To unselect parts, keep pressing Ctrl while moving on the selected parts. You can then choose the operation you need to do for the selected parts.
Lasso Tools: There are multiple lasso tools to choose from; make sure to click Enter once you finish placing the points.
Teeth segmentation: The first time you choose this tool, the teeth will be segmented separately. You can then mark a tooth or more. Choosing delete and fill will simulate the extraction site.
**Invert selection by pressing the letter “I”
** Below the screen, you will find an info bar that will always guide you through the procedure.
Cropping tool
Select the cropping tool and choose between various cropping methods. To crop and fill the model, it has to be watertight, meaning that it has no holes and no shells.
Plane cut
A cropping tool based on planes. You can keep both parts or only one of them. You can also fill out both of them or only one. To invert the selected part, click “I”
Sculpting
To Sculp models, use sculpting tool, which you can adjust it's size and strength. Also you can mark faces to be protected from sculpting as sleeve areas by selecting them using any of the selection tools and marking Protect Selected Faces
Labeling
Mark your Guides and Models by labeling them. Select the labeling tool and write the text you want and adjust the extrusion length and whether you want it engraved or not. heading to the model itself ypu can draw the box that will contain the text with the size you want. Then click Label.
Tooth extraction
If you're planning to extract teeth and you want to do virtual extraction on the model, select Tooth Selection from the Selection tools and the teeth will be automatically selected. select the tooth you want to virtually extract and choose Delete(fill)
Show/hide objects
Through all the designing process you can show and hide objects and models by selecting the Visibility Icon in front of them.
