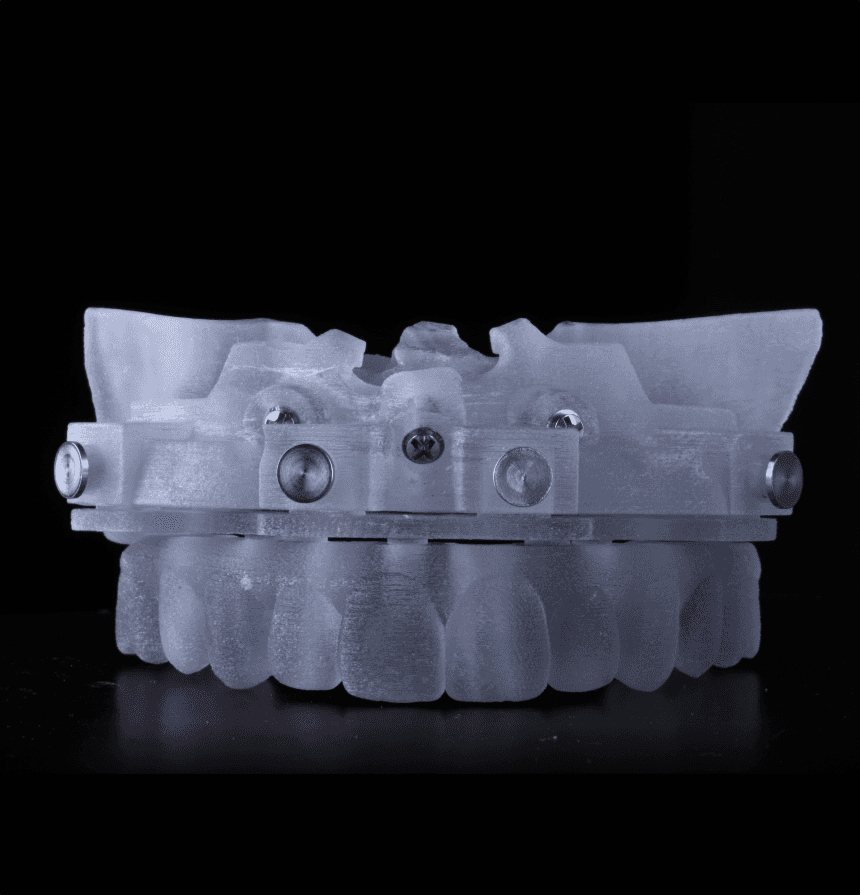

Initiating a Stackable Guide Workflow
After completing the case planning, open the Design app, select the bone model then select the Stackable Guide module. Enter a case name, choose the working arch, and click Create Case to proceed.
Creating a Reduced Bone Model
Adjusting the reduction plane
The first step is to create a reduced bone model. A reduction platform will appear, and the gizmo control will be automatically activated. You can verify their activation in the Guide Tools panel.
The correct position for the reduction plane is between the implant platform and the guide sleeve. If the reduction platform is not properly adjusted within this area, it will be displayed in red. Once positioned correctly, it will turn blue.
Adjusting the Distal Cuts
Next, adjust the distal cuts to define where the bone reduction stops distally. Click on Distal Cut, which will activate the first distal cut.
For better accuracy, it is recommended to position the cut while viewing from an occlusal perspective. Use the gizmo control to adjust the cut to the precise position where you plan to stop the bone reduction. Ensure that the blue arrow is directed distally and apically for correct orientation.
Then add Cut 2 and repeat the same steps on the opposite side.
Click Reduce Bone to generate the reduced bone model. The model will be automatically created and added to the Models List.
Defining Guide Seating and Generating the Template
Ensure that the guide parameters are set to your desired specifications.
Then select the reduced bone model and use a selection tool, such as the Brush, to mark the area where the guide will be seated. Once the area is marked, click Generate Template to proceed.
This template will serve as the base for creating the stackable guide components.
Adding Latches
Latches are articulation components that connect different parts of the guide. Follow these steps to add them:
1. Ensure that the reduction platform is visible and the guide template is selected.
2. Click on Latches, then click Add to start placing them.
3. It is recommended to position the latches while viewing from an occlusal perspective for better accuracy.
4. If a latch interferes with any planned elements, it will be highlighted in red. Adjust its position until it turns blue, indicating correct placement.
5. For optimal stability, place three latches in a way that provides tripod support.
Generating the Foundation Guide and Surgical Guide
Now, it's time to generate the Foundation guide.
1. Ensure that the template, latches, distal cuts, and reduction plane are visible and selected.
2. Click Generate Foundation Guide
Next, generate the surgical guide:
1. Confirm that all necessary elements remain visible and selected.
2. Click Generate Surgical Guide to finalize the design.
Creating the Vertical Mount
1. Select the intraoral scanned model.
2. Use selection tools, such as the Brush, to mark the seating area.
3. Ensure that all latches are visible.
4. Click Generate Vertical Mount to create the component.
Adding Pegs to the Wax-Up
1. Select the wax-up and make it visible.
2. Ensure that all latches are also visible.
3. Go to Utilities and select Export Model with Pegs.
4. The model will be saved as an STL file, ready for printing.
Exporting the Guide for Printing
1. Select all guide elements by holding CTRL and clicking on each component.
2. Right-click and choose Export Selected.
3. Your STL files are now ready for printing.
