Primitive Shapes and Boolean operations

Primitive Shapes and Boolean operations

Primitive Shapes and Boolean operations
Adding and New Model
To add a new model to work on, click on Add
and choose New Model
. Browse to the location where you save the model and load it as you want.

Adding and Editing Primitive Shapes
To add a primitive shape click on Add
and choose the shape you want, if you know the dimension you will use adjust it and click on Add to Scene
. Once the shape is added you can Change it's dimensions and position and rotate it.

Boolean Operations

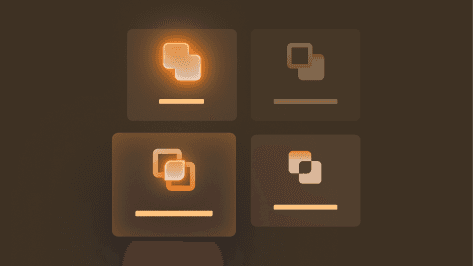

You can do Boolean operation on 2 models or shapes by selecting both of them and choosing Boolean Operations
and choose an operation
Union

Difference and Intersection
